Understanding backpropagation

Understand backpropagation

• Neural network is the most important basis of Deep learning. It’s release has brought AI closer to us. It like human’s brain.

Forwarding

• This is process calculate value for each node in the neural network. It’s have us to inferred output of neural network.

Backpropagation

• It’s a process of updating weights of neural network using optimize algorithms like Gradient Descent (SGD, RMS, …)

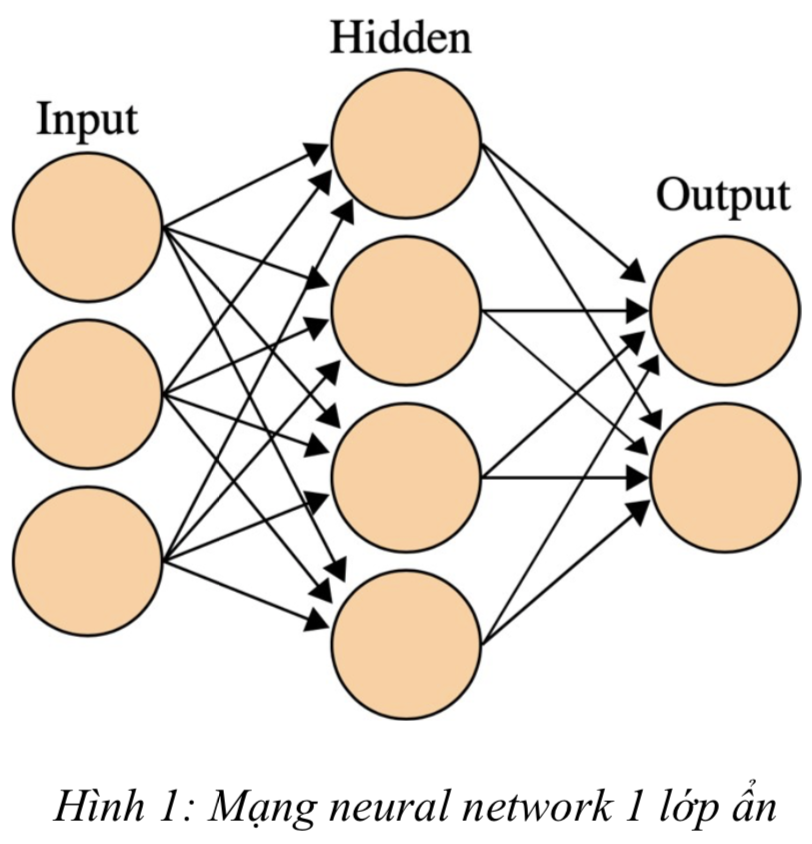

• Here we will example backpropagation of a neural network like bellow, with:
  • Loss: MSE
  • activation at each node: sigmoid



  • In order to update weight, Gradient Descent requires us to calc derivative of Loss by each weight, so can have:

  So in order to calc derivative of loss by weight, we only need to calculate

  • Because derivative computation of loss of the output layer different from the hidden layer, so we have separately result:

    • With output layer:


    • With hidden layer: Asume that k is the layer next to j

      Implement backpropagation step by step

• Initiate weights for neural network, randomly or by some methods
• For each training example:
  • Forward the input to calculate the value for nodes (hidden or output layer).

  • For each output k (model have many output):


  • For each node in hidden layer (h is activation):


  • Update each network weight:
